AAT15 – $6995

AAT15

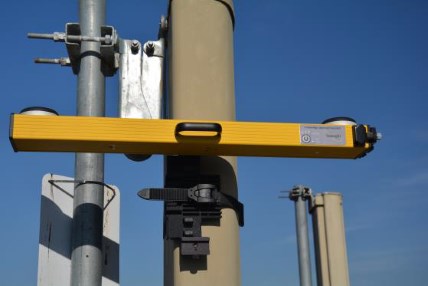

For projects requiring an increased level of accuracy, the AAT15 delivers. The enhanced performance is achieved while still allowing the use of our standard RF panel alignment mounting accessories. With an accuracy of .15 degrees RMS in azimuth and .1 degree in Tilt and Roll, it is the most accurate RF panel  alignment tool on the market today. The AAT15 alignment reports are accepted by all major US carriers as well as many international carriers.

  • Measures azimuth, latitude/longitude, tilt, roll (plumb), MSL height, and AGL height (with laser rangefinder option)
  • Optionally add multiple pictures to any report. Pictures contain the alignment information embedded directly in the photograph.
  • Increased azimuth accuracy compared to the AAT30
  • Extremely versatile mounting options for the many antenna sizes and shapes in the marketplace
  • Produces PDF and CSV reports for closeout packages that are accepted and/or required by all carriers
  • Use with any smart phone, tablet, windows or Apple device to control the AAT and email results in PDF or csv formats.
  • Uses both GPS and GLONASS satellites, providing the quickest and most accurate measurements in the industry. This technology is REQUIRED by some carriers and is not available in most other alignment products. Almost twice as many satellites are available when compared to GPS alone.
  • 3 year manufacturer’s warranty
  • No return to the factory for calibration. Calibration can be done in the field in less than 2 minutes, saving customers time and money.
  • Free online training videos at https://www.sunsight.com/training
  • Designed and Manufactured in the U.S.A.!
Azimuth (Heading) Accuracy (degrees) +/- .15 RMS
+/- .3 R95
+/- .4 R99
Tilt and Roll Range and Accuracy (degrees) +/- 22.5 range
+/- .1 accuracy
AGL Height (ft) +/- 1 standard
+/- .125 premium
Horizontal Accuracy (ft) +/- 1**
Vertical Accuracy – MSL (ft) +/- 2**
Size (in) 26 x 3 x 2.6
Weight (lb) 4.4

** Depends on multipath environment, number of satellites in view, and satellite geometry. Requires SBAS corrections.

Request A Quote

AAT30/AAT15/AAT08 Quick Start Guide

Training Video



Parts and Accessories
Part Number: AAT15
Part Name: AAT15

Everything needed to do most cellular panel antenna alignments

Description: AAT15 Base Kit (Includes Hard Carrying Case p/n 7501, Side Mount p/n 2110, and Battery Charger p/n 1500)

*Performs RF Panel Alignment Only

*Includes Photo Reports and Virtual Reality Interference Reports when paired with an Android 6.0+ device



Tablet
Part Number: 4300
Part Name: Tablet

For accessing and operating the AAT menu.

Description: 4G IP67 Rugged Android Tablet

*Customer can use any WiFi enabled smartphone, tablet, or laptop to access and operate the AAT menu

*Android 6.0 or higher device required for Embedded Photos and Virtual Reality Interference Reporting Features via Sunsight App





Part Number: 2400
Part Name: AntennaView Camera Mount Complete Kit

Mounts Smartphone or Tablet to the Side Mount allowing for capture of AntennaView photo

 Includes: AntennaView Camera Mount Complete with both Smartphone and Tablet Adaptors



Laser Rangefinder
Part Number: 3301
Part Name: Laser Rangefinder Kit

Used to measure AGL Height.

Description:  Laser Rangefinder Kit (Includes Laser Rangefinder, software activation and standard 2M cable p/n 3302)

Training Video







Azimuth Scope Kit
Part Number: 3300
Part Name: Azimuth

For taking azimuth measurements with the MW/AAT Unit from the ground.

Description:  Azimuth Scope Kit (Includes spotting scope, mounting bracket, case, and tripod*)

*Tripod not pictured





AIR21 Mount
Part Number: 2100
Part Name: Air21 Mount

Description:  Air 21 Mount (required for Ericsson Air21 Air32 or Air11 Antenna Alignment)

Ericsson AIR Series Mount Instructions





Small Cell Mount
Part Number: 2101
Part Name: Small Cell Mount

Description:  Round antenna mount for tubular and Kathrein antennas (ex: Kathrein p/n 840 10515 or 840 10516)







Part Number: 2220
Part Name: Flat Panel Antenna Mount

Description:  Flat panel antenna mount (ex: Radwin 5000 JET Base Station)



Side Mount Extension
Part Number: 2310
Part Name: Side Mount Extension

Description: Side Mount Extension to allow the MW/AAT Unit to be positioned in front of an antenna (for flagpole/monopole)



FASB Mount
Part Number: 3215
Part Name: FASB Mount

Description:  Nokia FASB Antenna Mount, for Nokia FASB Antenna Alignment

Nokia FASB Mount Instructions





Part Number: 2320
Part Name: Quintel Antenna Adapter

Description:  Quintel Antenna Side Mount Adapter for use with Side Mount when installing and aligning Quintel antennas.

*Requires Side Mount to be returned to Sunsight for modification.





Omni Antenna Adapter
Part Number: 2111
Part Name: Omni Antenna Adapter

Description:  Omni Antenna Adapter for use with Side Mount when installing and aligning small diameter Omni Antennas



Foreign Grids
Part Number: 1205
Part Name: Foreign Grid Bundle

Grid Bundle Includes:

Part Number: 1201
Part Name: Activation of British National Grid

Part Number: 1202
Part Name: Activation of Irish Grid

Part Number: 1203
Part Name: Activation of French Lambert Grid

Part Number: 1204
Part Name: Activation of Dutch RD Coordinate System (Rijksdriehoekscoördinaten)

*All Grid Systems can be purchased individually
