AAT30 – $6395

With an industry leading accuracy of .3 degrees RMS in azimuth and .1 degree in Tilt and Roll, the AAT30 is the ideal product for traditional RF panel antenna alignment. The AAT30 alignment reports are accepted by all major US carriers as well as many international carriers.  In addition, the AAT30 is the smallest and lightest device of its kind in the market. Climbing with your AAT30 and using it on the tower is easier than ever before.  All this while still maintaining the durability and ruggedness that Sunsight users have come to expect from the most fully featured device in the industry.

  • Only alignment tool accepted by all U.S. carriers.  The AAT30 is even mandated in multiple regions and projects.
  • Measures azimuth, latitude/longitude, tilt, roll (plumb), MSL height, and AGL height (with laser rangefinder option).
  • Produces PDF, CSV and Google Earth reports for closeout packages that are accepted and/or required by all carriers.
  • Free photo report feature allows users to add multiple pictures to any report. Pictures contain alignment information embedded directly in the photograph.*
  • The AntennaView Camera Mounting System for tablet or smartphone creates same horizon view as antenna boresight for easy identification of potential interference and negates the need for an expensive, fragile embedded camera (up to $1000 savings over other alignment tools). Add an additional picture to show the AAT mounted on antenna as required in many closeout reports.  An industry first!
  • Create Google Earth patent pending Virtual Reality Interference Reports (VRIR) for your customers, allowing them to view potential interference and obstructions.
  • Access and operate the AAT using any smartphone or tablet and email results right from the tower! No post processing required!
  • Supports multiple coordinate systems for international use
    • British National Grid
    • French Lambert II
    • Irish National Grid
    • Dutch RD Coordinate System (Rijksdriehoekscoördinaten)
  • 3 year manufacturer’s warranty. Longest in the industry.
  • No return to the factory for calibration, saving time and money. Compare with others who charge up to $900 for “required” maintenance.
  • Extruded aluminum housing – plastic-based devices are well known to fail in real world applications.
  • Extremely versatile mounting options for the many antenna sizes and shapes in the marketplace.
  • Free online training videos at https://www.sunsight.com/training.
  • Designed and Manufactured in the U.S.A.!

*For AAT users with an Android 6.0 or greater device

Azimuth (Heading) Accuracy (degrees) +/- .3 RMS
+/- .5 R95
+/- .75 R99
Tilt and Roll Range and Accuracy (degrees) +/- 22.5 range
+/- .1 accuracy
AGL Height (ft) +/- 1 standard
+/- .125 premium
Horizontal Accuracy (ft) +/- 1**
Vertical Accuracy – MSL (ft) +/- 2**
Size (in) 17 x 3 x 2.6
Weight (lb) 3.6

** Depends on multipath environment, number of satellites in view, and satellite geometry. Requires SBAS corrections.

Request A Quote

Parts and Accessories

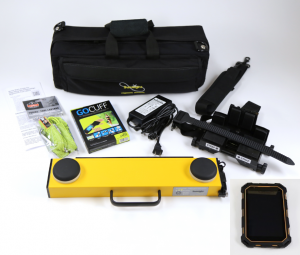

AAT30 Kit
Part Number: AAT30
Part Name: AAT30

Everything needed to do most cellular panel antenna alignments

Description: AAT30 Base Unit (Includes Soft Carrying Case p/n 7503, Wrist Cuff p/n 7510, Side Mount p/n 2110, Shock Strap p/n 7511, and Battery Charger p/n 1500)

AAT30/AAT15/AAT08 Quick Start Guide

Training Video

AAT30/AAT15/AAT08 Quick Start Guide

Training Video

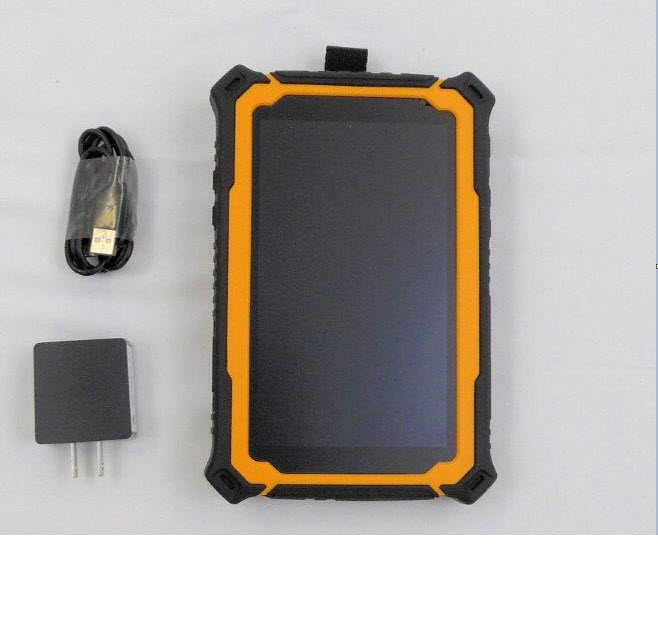

Tablet
Part Number: 4300
Part Name: Tablet

For accessing and operating the AAT menu.

Description: 4G IP67 Rugged Android Tablet

*Customer can use any WiFi enabled smartphone, tablet, or laptop to access and operate the AAT menu

*Android 6.0 or higher device required for Embedded Photos and Virtual Reality Interference Reporting Features via Sunsight App



Part Number: 2400
Part Name: AntennaView Camera Mount Complete Kit

Mounts Smartphone or Tablet to the Side Mount allowing for capture of AntennaView photo

Includes: AntennaView Camera Mount Complete with both Smartphone and Tablet Adaptors



Laser Rangefinder
Part Number: 3301
Part Name: Laser Rangefinder Kit

Used to measure AGL Height
Description:  Laser Rangefinder Kit (Includes Laser Rangefinder,   software activation and standard 2M cable p/n 3302)

Training Video









AAT30 Hard Case
Part Number: 7500
Part Name: Hard Case

Description: Hard Case for AAT30 units (Watertight, crushproof, and dust proof)





Azimuth Scope Kit
Part Number: 3300
Part Name: Azimuth

For taking azimuth measurements with the MW/AAT Unit from the ground.

Description:  Azimuth Scope Kit (Includes spotting scope, mounting bracket, case, and tripod*)

*Tripod not pictured





AIR21 Mount
Part Number: 2100
Part Name: Air21 Mount

Description:  Air 21 Mount (required for Ericsson Air21 Air32 or Air11 Antenna Alignment)

Ericsson AIR Series Mount Instructions





Small Cell Mount
Part Number: 2101
Part Name: Small Cell Mount

Description:  Round antenna mount for tubular and Kathrein antennas (ex: Kathrein p/n 840 10515 or 840 10516)





Part Number: 2220
Part Name: Flat Panel Antenna Mount

Description:  Flat panel antenna mount (ex: Radwin 5000 JET Base Station)



Side Mount Extension
Part Number: 2310
Part Name: Side Mount Extension

Description: Side Mount Extension to allow the MW/AAT Unit to be positioned in front of an antenna (for flagpole/monopole)



FASB Mount
Part Number: 3215
Part Name: FASB Mount

Description:  Nokia FASB Antenna Mount, for Nokia FASB Antenna Alignment







Part Number: 2320
Part Name: Quintel Antenna Adapter

Description:  Quintel Antenna Side Mount Adapter for use with Side Mount when installing and aligning Quintel antennas.

*Requires Side Mount to be returned to Sunsight for modification.







Omni Antenna Adapter
Part Number: 2111
Part Name: Omni Antenna Adapter

Description:  Omni Antenna Adapter for use with Side Mount when installing and aligning small diameter Omni Antennas



Foreign Grids
Part Number: 1205
Part Name: Foreign Grid Bundle

Grid Bundle Includes:

Part Number: 1201
Part Name: Activation of British National Grid

Part Number: 1202
Part Name: Activation of Irish Grid

Part Number: 1203
Part Name: Activation of French Lambert Grid

Part Number: 1204
Part Name: Activation of Dutch RD Coordinate System (Rijksdriehoekscoördinaten)

*All Grid Systems can be purchased individually
