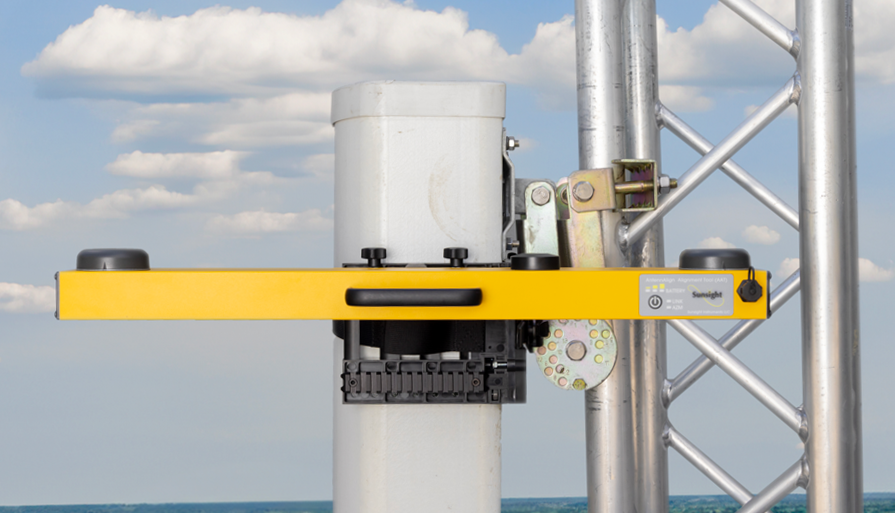

The Sunsight AntennAlign® Alignment Tool (AAT) delivers precise measurement of azimuth (heading/yaw), tilt (pitch), and roll for installation, verification, and maintenance across telecom, broadcast, satellite, defense, and infrastructure applications.
With an accuracy of .15° RMS in azimuth and .1° in tilt and roll, the AAT supports reliable alignment workflows in both urban and remote deployment environments. Multi-constellation, multi-frequency GNSS support including GPS, GLONASS, Galileo, QZSS, BeiDou and L1/L2, improves measurement reliability in areas with limited sky visibility or signal obstruction.
The AAT supports standard cellular RF panel mounting accessories and integrates comprehensive reporting capabilities, including PDF reports, CSV exports, antenna line-of-sight imagery, free-hand photos, and Google Earth file generation.*
The AAT can be mounted to most any standard Picatinny/MLOK rail allowing users to create their own mounts for specialized alignment needs.
Reliable Performance in Challenging Environments
USB-C wired control interface enables operation in high-interference environments when WiFi might be compromised
Enhanced multi-constellation, multi-frequency GNSS subsystem supports consistent satellite connection and azimuth performance in congested RF environments and locations with degraded satellite visibility.
Multiple GNSS frequency capability (L1 and L2) minimizes effects of competing RF signals.
Durable Design, Lower Cost of Ownership
The AAT features a rugged aluminum housing, no onboard display, and no required factory calibration leading to higher unit availability. A standard 3-year warranty is included.
Identify and Document Obstructions Faster
Google Earth Virtual Reality Interference Reporting (patented) and integrated line-of-sight photo capture streamline obstruction analysis and installation verification workflows.*
Designed for Efficient Field Operation
An icon-based user interface simplifies operation, reduces training requirements, and improves usability across multilingual teams and varying lighting conditions.
Built and Supported in the USA
Sunsight invented GNSS-based antenna alignment in the USA 20 years ago.
All Sunsight products are designed and manufactured in the USA by a small business focused on precision alignment solutions for critical infrastructure applications.
Sunsight holds several patents relating to alignment technologies.
* For AAT users with an Android 12.0+ device
