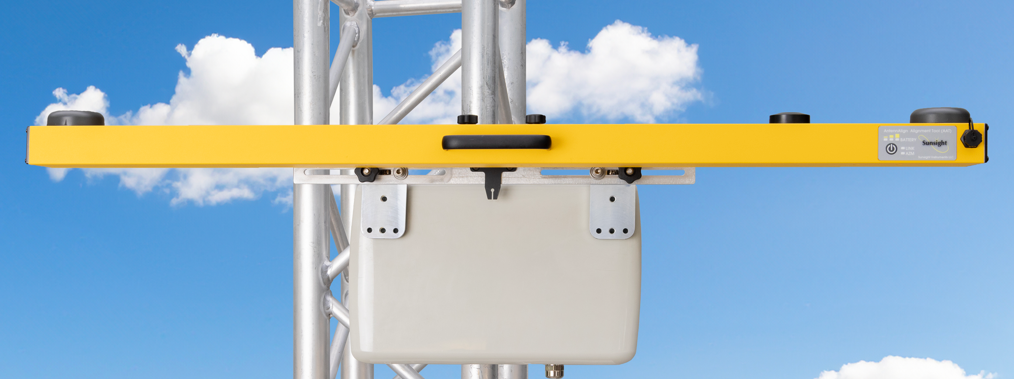

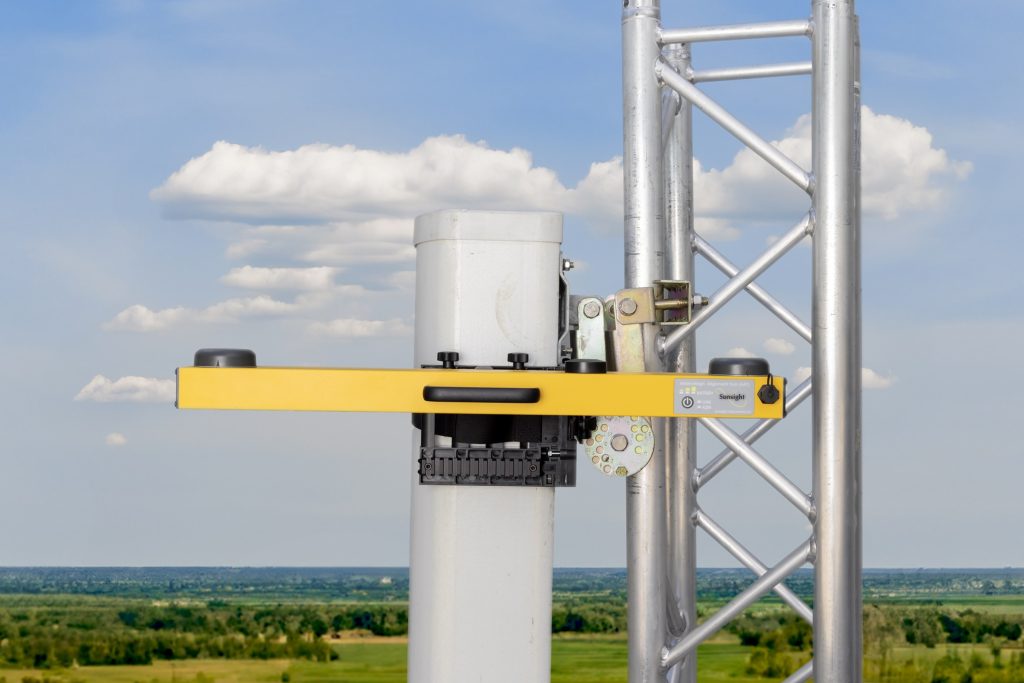

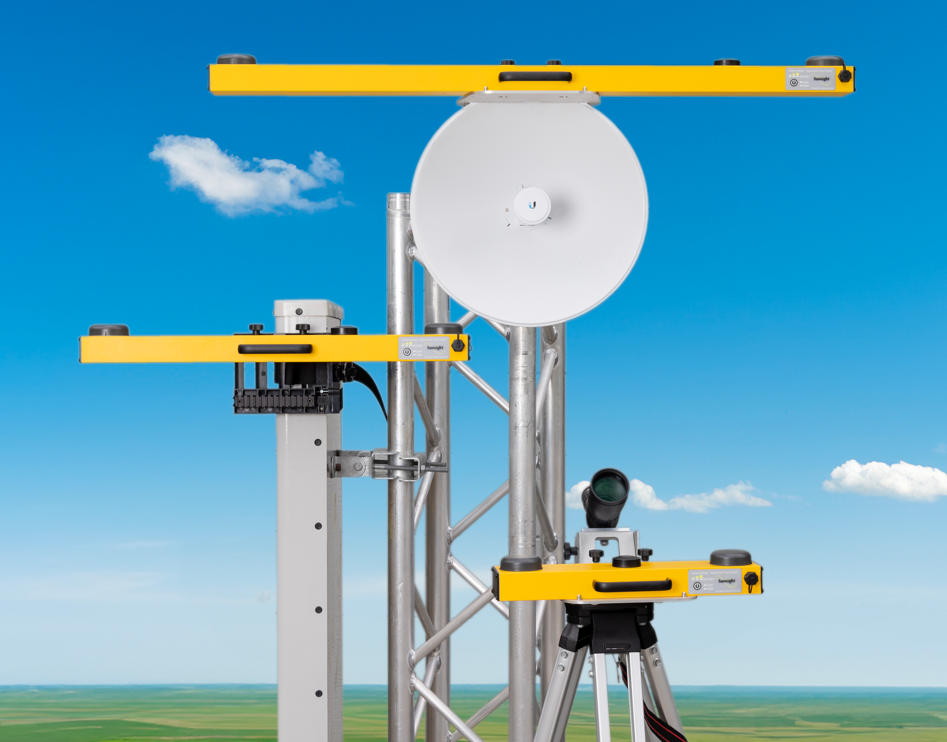

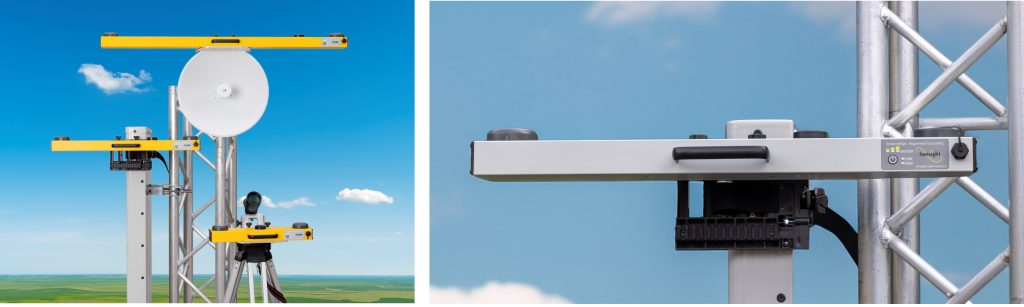

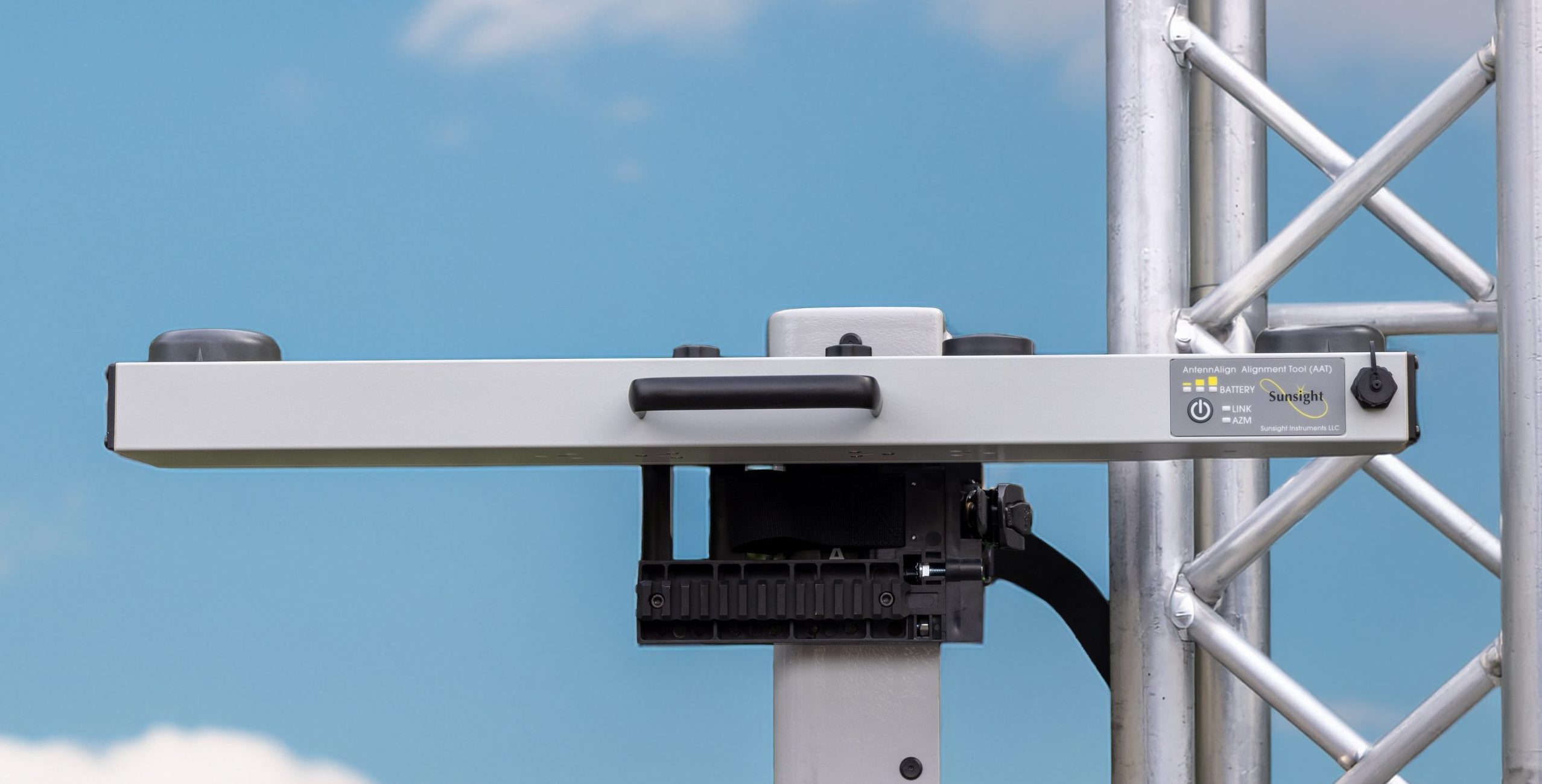

AAT/AAT Mini/AAT Max Alignment Tools

The Sunsight AntennAlign® Alignment Tools (AATs) are a family of precision instruments for measuring azimuth (heading/yaw), tilt (pitch), and roll planes. The products are used in telecom, defense, broadcast, satellite, and infrastructure applications for accurate installation of devices or platforms. An optional LASER rangefinder provides height-above-ground (AGL) measurements to support complete alignment validation in the field.

The AATs leverage multi-constellation, multi-frequency GNSS services, including GPS, GLONASS, Galileo, QZSS and BeiDou, as well as L1 and L2 frequency bands. The AATs use a moving base RTK solution that simultaneously accesses multiple satellite systems, improving accuracy, reducing time to first fix, and maintaining performance in adverse conditions. This allows the AAT to deliver reliable positioning and alignment data in environments where signal availability may be limited or obstructed.

Typical AAT applications include alignment of direction (ex. cellular panel) antennas for public and private networks. The alignment technology is adaptable for use with industrial and military devices including radar and Free Space Optics (FSO).

Reliable in Challenging Environments

The AAT is designed to ensure accurate reliable alignment in real-world field conditions, including:

Obstructed or limited sky visibility (urban environments, foliage, tower structures)
Remote or low-infrastructure deployment sites
High-interference or signal-degraded environments
Complex, multi-antenna installations

Designed for Efficient Workflows

The system’s user interface, accessed via WiFi or USB-C cable, provides clear visualization of azimuth, tilt, and roll through both graphic and numeric displays. Customizable layouts allow users to optimize visibility based on lighting conditions and personal preference supporting efficient operation in bright outdoor environments.

By simplifying measurement and adjustment, the AAT reduces alignment time, minimizes rework, and supports consistent results across technicians and job sites.

Alignment Verification and Reporting

Integrated reporting capabilities allow users to capture alignment data and supporting images directly from a connected smartphone or tablet. This enables efficient documentation of installation quality and supports internal validation, customer reporting, and audit requirements.

Built for Field Durability

Designed for repeated use in demanding environments, the AAT maintains performance across varying weather conditions and job site challenges. Its durable construction supports reliable operation during transport, installation, and long-term field deployment.

Download Datasheet(s)

View Sunsight Product Catalog

Get a Quote

What’s New in the Latest AAT

USB-C wired control interface enables operation in high-interference environments when WiFi might be compromised
Enhanced multi-constellation (5 systems) and multi-frequency (L1 and L2) GNSS subsystem improves azimuth acquisition under poor signal conditions
Updated icon-based interface reduces training time and minimizes user input
Redesigned mounting system supports a wider range of antenna shapes and sizes

Core Alignment Capabilities

High-precision measurement of azimuth (heading/yaw), tilt (pitch), and roll (plumb) using moving base RTK GNSS
Mean Sea Level (MSL) height measurement standard; optional AGL height via handheld LASER rangefinder
Multi-constellation (GPS, GLONASS, Galileo, QZSS, BeiDou) and multi-frquency (L1 and L2) GNSS support for improved accuracy and reliability
Reports in multiple global coordinate systems for international deployment, including: British National Grid, French Lambert II, Irish National Grid, and Dutch RD (Rijksdriehoekscoördinaten)

Field-Proven Advantages

Accepted by All Major U.S. Cellular Telecom Carriers – ensures compliance with carrier requirements across all markets and eliminates approval risk
Consistent accuracy in degraded environments – maintains performance when encountering limited sky visibility or obstructions
Reduced equipment fragility – no built-in display or camera lens to break; minimizes possible failure points and promotes field availability
Provides line-of-sight imagery as well as free-hand photography
Durable construction – IP-65 rated, powder-coated aluminum housing, billet aluminum mounting system, no internal moving parts
Supports mounting via Picatinny/MLOK rails. The housing also includes threaded inserts to support custom mounting solutions for specialized installations
Designed for real-world use – performs reliably in tower, rooftop, and other demanding outdoor conditions

Alignment Verification & Reporting

Generate PDF and CSV reports directly from the field
Capture antenna line-of-sight images using the AntennaView™ Camera Mounting System
Export Google Earth files for spatial visualization and documentation
Create patent-pending Virtual Reality Interference Reports (VRIR) for advanced obstruction analysis
Supports installation closeout requirements with verifiable alignment data and imagery

Lower Cost of Ownership

No required factory calibration maximizes field availability and minimizes service costs
End-user calibration completed in under two minutes
Combines multiple capabilities into a single system-no need for additional tools

AntennaView™ Camera Mounting System

Aligns smartphone camera with antenna boresight for accurate horizon and line-of-sight visualization
Identifies potential obstructions quickly without requiring embedded camera hardware
Eliminates fragile, high-cost, high maintenance integrated camera components
Allows free-hand photos for installation verification required for many closeout reports

Additional Details

Extensive reporting formats included: PDF, CSV, image capture, and Google Earth files
3-year manufacturer’s warranty
Designed and manufactured in the USA by a small business
Sunsight invented GNSS-based antenna alignment in the USA 20 years ago

Accurate. Reliable. Sunsight.

	AAT	AAT Mini	AAT Max
Azimuth (Heading) Accuracy (degrees)	+/- .15 RMS +/- .3 R95 +/- ..4 R99	+/- .3 RMS +/- .5 R95 +/- .75 R99	+/- .08 RMS +/- .16 R95 +/- .25 R99
Tilt and Roll Range and Accuracy (degrees)	+/- 22.5 range +/- .1 accuracy	+/- 22.5 range +/- .1 accuracy	+/- 22.5 range +/- .1 accuracy
AGL Height (ft)	+/- 1 standard +/- .125 premium	+/- 1 standard +/- .125 premium	+/- 1 standard +/- .125 premium
Horizontal Accuracy (ft)	+/- 1**	+/- 1**	+/- 1**
Vertical Accuracy – MSL (ft)	+/- 3**	+/- 3**	+/- 3**
Size (in)	26 x 3 x 2.6	17 x 3 x 2.6	43 x 3 x 2.6
Weight (lb)	4.4	3.6	5.7
